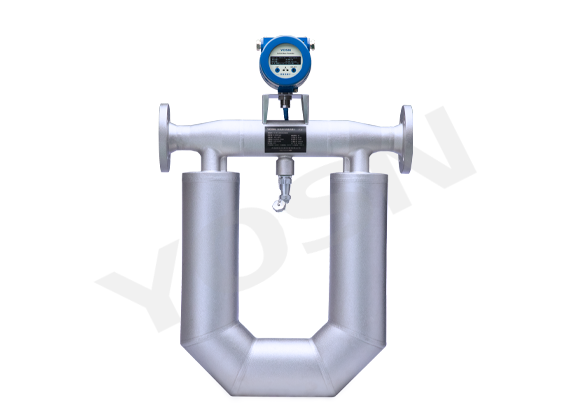

Coriolis Mass Flowmeter
科里奥利质量流量计

Applicable mediumLiquid fluid, slurry, suspension, high viscosity fluid, etc.

Not applicable medium Solid medium

0411-

84409900 / 84403377

Online consulting Online message
Product introduction


Overview:


    YS-MFU series mass flowmeter is a new type of high-precision flow and density measuring instrument developed by our company based on the Coriolis force principle and multivariable digital processing measurement technology. Realize the direct and precise measurement of fluid mass flow without any conversion or correction of pressure, temperature, viscosity, density, etc. Its structure is composed of two parts: sensor unit and transmitter unit. The instrument is designed and manufactured according to the national standard of intrinsically safe explosion-proof type. The mass flow meter can directly measure the quality of the fluid, with high accuracy (0.1%~0.2%), low installation requirements (the front and rear straight pipe sections of the instrument are not highly required), reliable and stable operation, and low maintenance rate.




Features:


● Using a multi-variable digital processing system. Strengthen the filtering of the signal, greatly improve the sensitivity and accuracy of signal measurement, speed up the response time of the system, and make the measurement more reliable;

● The adoption of multi-variable digital processing system makes the system composition more flexible and convenient. In many occasions, multi-variable digital processing system modules and sensors can form a complete flow measurement system without the need to configure a flow converter. Such as CNG, LNG dispenser system, quantitative control system, flow or density single parameter measurement system, etc.;

● High measurement accuracy, general mass flow measurement accuracy can reach 0.1%-0.2%, density measurement resolution can reach 0.002-0.02g/cm^3; temperature measurement error is less than 0.5 degrees;

● Realization of density and temperature measurement functions, which can derive medium concentration measurement functions (two-component medium);



Technical parameters

Liquid mass flow meter reference range table

ModelDiameter (mm)Recommended flow range(kg/h)Maximum  flow range(kg/ h)
YS-MFU-00330-1500-180
YS-MFU-00660-4800-960
YS-MFU-010100-18000-2100
YS-MFU-015150-36000-4500
YS-MFU-020200-60000-7200
YS-MFU-025250-96000-12000
YS-MFU-032320-180000- 21000
YS-MFU-040400-300000-36000
YS-MFU-050500-480000-60000
YS-MFU-080800-1500000-180000
YS-MFU-1001000-2400000-280000
YS-MFU-1501500-4800000-600000


General technical parameters of liquid mass flow meters

●Flow measurement accuracy:±0.1-0.2%
Repeatability:±0.05-0.1%
●Density measurement range:0< ρ < 5g/ cm³
●Density measurement accuracy:±0.002g/cm³
●Temperature measurement range:-200-350℃
Temperature measurement accuracy:±1℃
●Measured medium temperature:-50℃ - 200℃
●Applicable ambient temperature:-40℃ -80℃
●Material quality:Wetted part 316L   Shell 304
●Work pressure:Conventional 4MPa, high pressure can be customized
●output signal:4-20mA DC current signal, 0-10KHz frequency pulse signal,


Pulse equivalent signal, RS485 communication signal
●Explosion-proof     grade:Exd(ib) II CT6
●Protection:IP67
