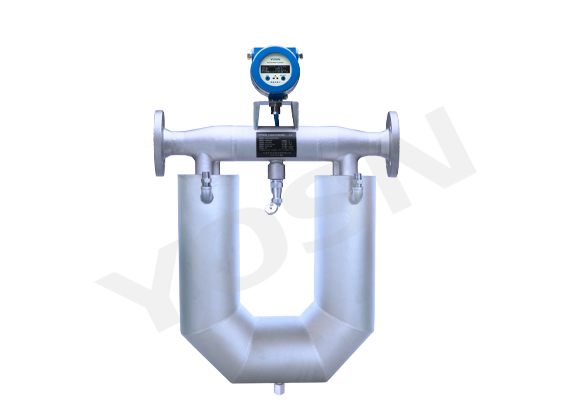

Heat Tracing Jacket Mass Flow Meter
伴热夹套质量流量计

Applicable mediumLiquid fluid, slurry, suspension, high viscosity fluid, etc.

Not applicable medium Solid medium

0411-

84409900 / 84403377

Online consulting Online message
Product introduction


Overview:


    The YS-MFU series heat-tracing jacketed mass flowmeter adopts a large-area thermal insulation jacket close to the surface of the flowmeter, which improves the heat exchange rate and enables the heat transfer medium in the cavities on both sides to exchange heat smoothly. The side heat tracing effect ensures the circulation of the heat transfer medium. The heat tracing and holding interval of the present invention can reach 60°C to 300°C, meets the requirement of high-temperature heat tracing of the medium to be measured on site, and can adapt to the requirements of increasingly complex site working conditions for high-precision measurement.


Features:


    ● Using a multi-variable digital processing system. Strengthen the filtering of the signal, greatly improve the sensitivity and accuracy of signal measurement, speed up the response time of the system, and make the measurement more reliable;

    ● High measurement accuracy, general mass flow measurement accuracy can reach 0.1%-0.2%, density measurement resolution can reach 0.002-0.02g/cm^3; temperature measurement error is less than 0.5 degrees;

    ● High heat exchange efficiency, the heat transfer medium on both sides of the cavity can conduct heat exchange smoothly to ensure the heating effect;



Technical parameters


Heat Tracing Jacket Mass Flowmeter Reference Range Table


ModelDiameter(mm)Recommended flow range(kg/h)Maximum flow range (kg/ h)
YS-MFU-00330-1500-180
YS-MFU-00660-4800-960
YS-MFU-010100-18000-2100
YS-MFU-015150-36000-4500
YS-MFU-020200-60000-7200
YS-MFU-025250-96000-12000
YS-MFU-032320-180000- 21000
YS-MFU-040400-300000-36000
YS-MFU-050500-480000-60000
YS-MFU-080800-1500000-180000
YS-MFU-1001000-2400000-280000
YS-MFU-1501500-4800000-600000


Heat Tracing Jacket Mass Flowmeter General Technical Parameters

Flow measurement accuracy:±0.1-0.2%
●Repeatability:±0.05-0.1%
●Density measurement range:0< ρ < 5g/ cm³
●Density measurement accuracy:±0.002g/cm³
●Temperature measurement range:-200-350℃
●Temperature measurement accuracy:±1℃
●Measured medium temperature:-50℃ - 200℃
●Applicable ambient temperature:-40℃ -80℃
●Material quality:Wetted part 316L shell 304
●Work pressure:Conventional 4MPa, high pressure can be customized
●output signal:4-20mA DC current signal, 0-10KHz frequency pulse signal、


Pulse equivalent signal, RS485 communication signal
●Explosion-proof grade:Exd(ib) II CT6
●Protection:IP67
