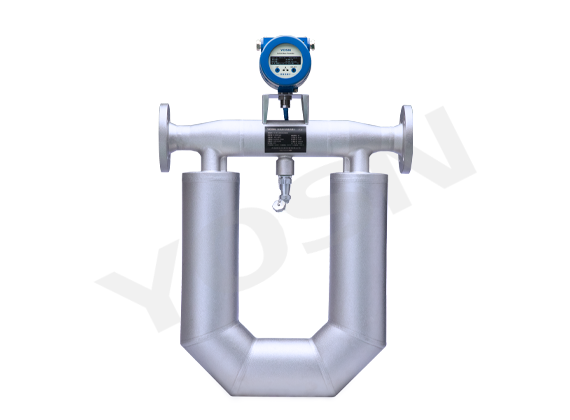

High Viscosity Mass Flow Meter
高粘度质量流量计

Applicable mediumHigh viscosity liquid fluid

Not applicable medium Solid medium

0411-

84409900 / 84403377

Online consulting Online message
Product introduction

Overview:


YS-MFU series high viscosity mass flow meter is a new type of high viscosity flow meter developed by our company based on Coriolis effect principle and multivariable digital processing measurement technology, there are often high viscosity, easy to crystallization of the fluid flow needs to be measured. Such fluids, even when transported at high temperatures (with hot media heating and insulation) , are highly viscous and often contain small amounts of solid particulate matter. Elliptical gear flowmeter or Rotary Piston flowmeter is usually used for on-site measurement indication. First of all, the insulation of the instrument can not be solved, second, the accuracy can not meet the requirements, more unable to achieve automatic control, YS-MFU series high viscosity mass flowmeter measurement of high viscosity medium flow, achieved satisfactory results.


Product features:


●The measuring tube adopts large cross-section tube with large bending radius, which ensures the small pressure loss during measuring.

●Because of the double-tube measurement, it is insensitive to the external vibration interference and has strong anti-interference.

●The stability of zero point is strong because the two metering tubes have the same flow rate.

● Low Oscillation frequency, only about 100Hz, the converter can sample every Hz signal from multiple points to improve the measurement accuracy.

The flow rate and temperature of high viscosity medium are combined into a cascade control system, and an automatic control valve is installed in the inlet pipe to automatically cut off and adjust the oil quantity according to the reaction temperature, so as to ensure a fast reaction state and reduce the time lag. After using mass flow meter, the flow rate of high viscosity medium is even and stable, the Labor intensity of operator is reduced, the time of pure lag is shortened, the quality of product is guaranteed, and the economic benefit is improved.

The Gaspard-Gustave de Coriolis is an ideal instrument for measuring high temperature, high viscosity, easy to crystallize and other high viscosity media with high accuracy, good stability and easy operation.

Technical parameters

Reference Range table for high viscosity mass flowmeter


Model numberSize (mm)

Recommended Traffic Range

 (KG/H)

Maximum flow range

 (KG/H)

YS-MFU-GN-00330-1500-180
YS-MFU-GN-00660-6000-720
YS-MFU-GN-00880-9600-1200
YS-MFU-GN-010100-18000-2100
YS-MFU-GN-015150-36000-4500
YS-MFU-GN-020200-60000-7200
YS-MFU-GN-025250-96000-12000
YS-MFU-GN-032320-180000- 21000
YS-MFU-GN-040400-300000-36000
YS-MFU-GN-050500-480000-60000
YS-MFU-GN-080800-1500000-180000
YS-MFU-GN-1001000-2400000-280000
YS-MFU-GN-1501500-4800000-600000




General technical parameters of high viscosity mass flowmeter

●Accuracy of flow measurement:±0.1-0.2%
●Repeatability:±0.05-0.1%
●Density measurement range by six months:0< ρ < 5g/ cm³
●Accuracy of density measurement:±0.002g/cm³
●Temperature range:-200-350℃
●Accuracy of temperature measurement:±1℃


Measured medium temperature

:-50℃ - 200℃
Applicable ambient temperature:-40℃ -80℃
●Material Quality:

Fluid Connection, 316L housing, 304

●Working pressure:Conventional 4MPA, high pressure can be customized
Output Signal:

4-20m DC current signal, 0-10KHz frequency pulse signal, pulse equivalent signal, RS485 communication signal




●Explosion proof grade:Exd(ib) II CT6
●Protection:IP67
